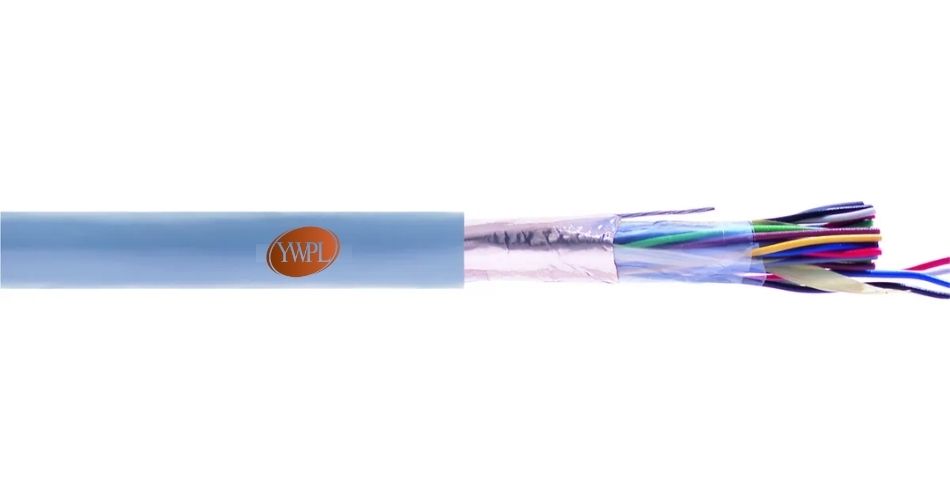

Cat6 Data Signal Cable Manufacturer in India
Yeshwant Wires is one of the leading Cat6 Data Signal Cable manufacturers in India, delivering premium-quality Ethernet and data transmission cables designed for superior performance in networking, IT infrastructure, telecommunications, and industrial automation systems. Our Cat6 cables ensure high-speed data transmission, minimal signal loss, and strong EMI/RFI protection, providing unmatched reliability for mission-critical communication networks.
Engineered with 99.99% pure copper conductors, precision twisted-pair geometry, and multi-layer shielding, these cables offer exceptional signal integrity, low attenuation, and consistent performance across long distances. Each cable is tested to meet or exceed IS, TIA/EIA 568, ISO/IEC 11801, and IEC 61156 international standards. Available in Cat5e, Cat6, and Cat6A variants, our data signal cables are ideal for both industrial control systems and high-speed LAN applications.
What are Cat6 Data Signal Cables?
Cat6 Data Signal Cables are high-performance twisted-pair cables designed for fast and reliable transmission of digital signals, Ethernet data, and control communication. They feature enhanced construction for superior noise rejection and bandwidth support up to 250–500 MHz, making them ideal for Gigabit and 10-Gigabit Ethernet networks.
Compared to regular signal cables, Cat6 data cables offer better shielding, impedance control, and pair separation — reducing crosstalk and ensuring data integrity. They are widely used in industrial automation, process control, security systems, and structured cabling installations.
Key Features & Technical Advantages
- High-Speed Transmission: Supports Gigabit and 10G Ethernet up to 100 meters.
- Excellent Signal Integrity: Twisted-pair precision reduces NEXT and FEXT interference.
- Superior Shielding: Foil and braid shield options for EMI/RFI protection in noisy environments.
- Low Attenuation: High-conductivity copper ensures minimal data loss.
- Controlled Impedance: 100Ω ±15Ω for Cat6 / 120Ω ±10Ω for RS485 systems.
- Wide Frequency Range: 100 MHz (Cat5e) to 500 MHz (Cat6A) bandwidth capability.
- Durable Sheathing: FRLS, LSZH, or PE jackets for safety and outdoor protection.
- Temperature Resilient: Reliable performance from -40°C to +85°C.
- Protocol Support: Compatible with Ethernet, Modbus, Profibus, RS485, and PLC communication.
Comprehensive Technical Specifications
| Property | Specification | Significance |
|---|---|---|
| Conductor Material | Tinned or Bare Copper (Solid or Stranded, fine gauge) | Tinned copper is widely preferred for signal cables as it resists oxidation, maintaining low resistance and ensuring long-term signal quality. |
| Voltage Grade | 300/500 V or lower (Low Voltage) | Defines the maximum safe working voltage, typically low, as these cables carry millivolt or low-amp signals. |
| Operating Temperature | -20°C to +85°C (Insulation dependent) | The temperature range over which the cable maintains its optimal electrical and mechanical properties, critical for reliability in varying environments. |
| Core Construction | Twisted Pairs / Star-Quads (Paired or Grouped) | Twisted Pairs are fundamental for data/signal integrity. They use differential signaling to cancel out noise (crosstalk and external interference), crucial for high-speed transmission. |
| Insulation | Polyethylene (PE) / Foam-Skin PE / PP (Polypropylene) | Materials with a low dielectric constant (like PE) are necessary to minimize capacitance and signal attenuation, which allows for higher data transmission speeds. |
| Shielding (Screen) | Individual Pair Foil / Overall Foil & Braid Combination (e.g., S/FTP) | Essential for noise immunity. Dual shielding offers protection against both low-frequency magnetic interference (Braid) and high-frequency electric interference (Foil). |
| Drain Wire | Tinned Copper Strand | Provides a low-impedance path to ground for the interference intercepted by the shield, ensuring effective noise rejection. |
| Sheath | LSZH / PVC / PUR (UV & Oil Resistant) | The outer jacket protects the core from the environment. LSZH (Low Smoke Zero Halogen) is standard for indoor safety, minimizing toxic fumes in a fire. |
| Impedance | 50 Ohm, 75 Ohm, or 100 Ohm (must match system) | CRITICAL for data transmission. Maintaining the specified characteristic impedance prevents signal reflections, which cause data errors. |
Why Choose Yeshwant Wires?
Trusted Manufacturer
Recognized Cat6 Data Cable manufacturer in India with years of technical excellence.
Tailored Engineering
Custom-built data cables for telecom, industrial, and IT network environments.
Premium Materials
Made with pure copper and precision insulation for maximum efficiency.
Global Standards
Meets ISO/IEC and TIA/EIA global data transmission standards.
Competitive Pricing
High-quality cables at factory-direct prices.
Pan-India Supply
Fast and reliable delivery to all industrial and commercial regions.
